GreenFuchs Sway Bar Set Front & Rear – 86 / BRZ (Gen 1 & 2)
Maximum stiffness. Direct handling. Uncompromisingly sporty.
The GreenFuchs sway bar kit is designed for drivers who want maximum precision and lateral stability—even at the expense of comfort. At 25 mm front and 22 mm rear (dual-adjustable), this set is significantly firmer than stock and transforms the 86 or BRZ into a highly direct, honest chassis package. This is not an OEM replacement, but a deliberately sport-tuned system for ambitious drivers who know exactly what they are getting into.
Technical Details
-
Compatible with Toyota GT86 / GR86 & Subaru BRZ I (ZN6 / ZN8 / ZC6)
- Fitment for BRZ II (ZD8) not yet confirmed; unlikely due to different sway bar design.
-
Material: High-strength spring steel, black powder-coated
-

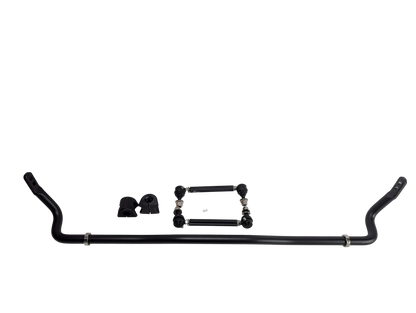

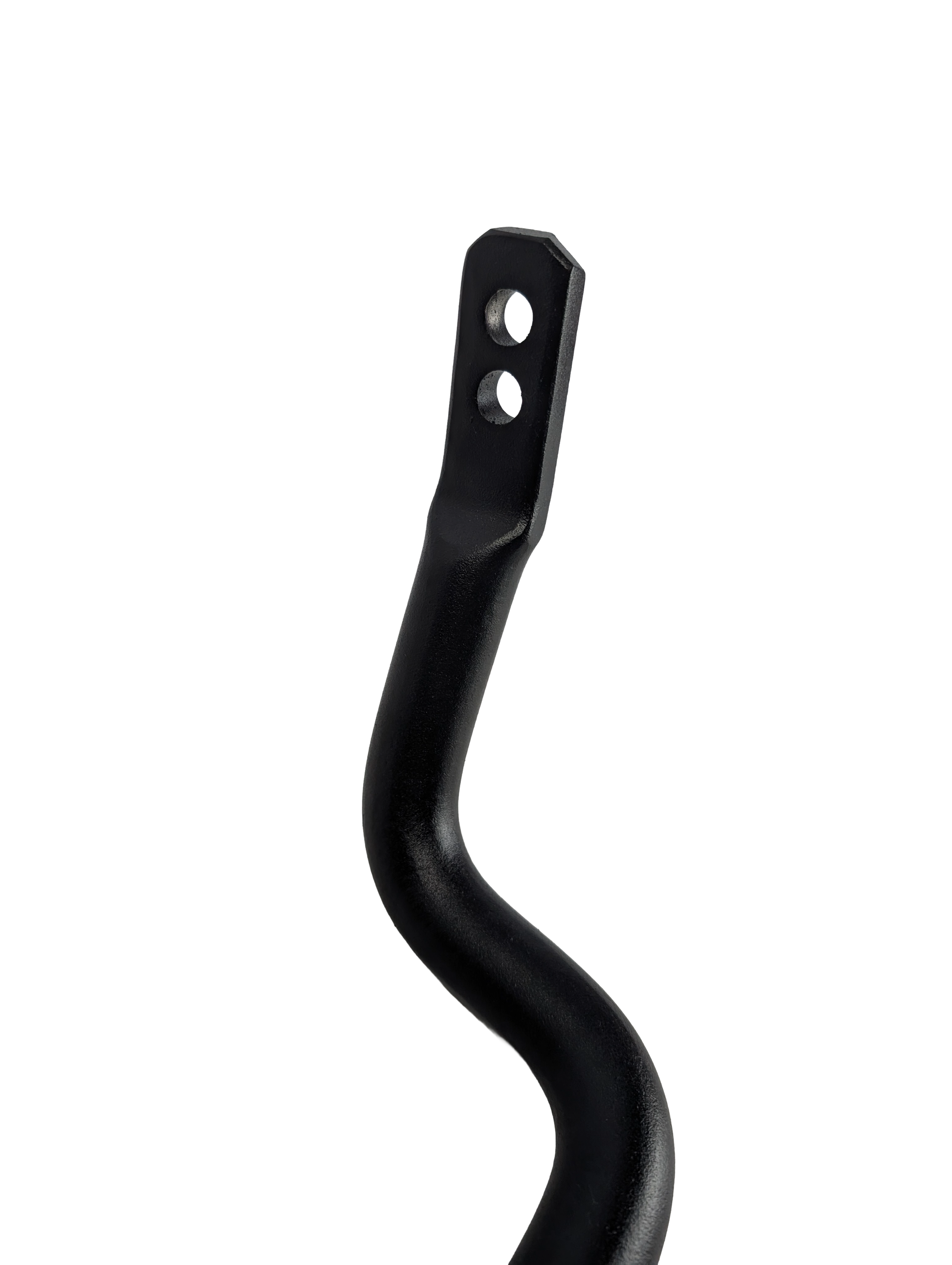

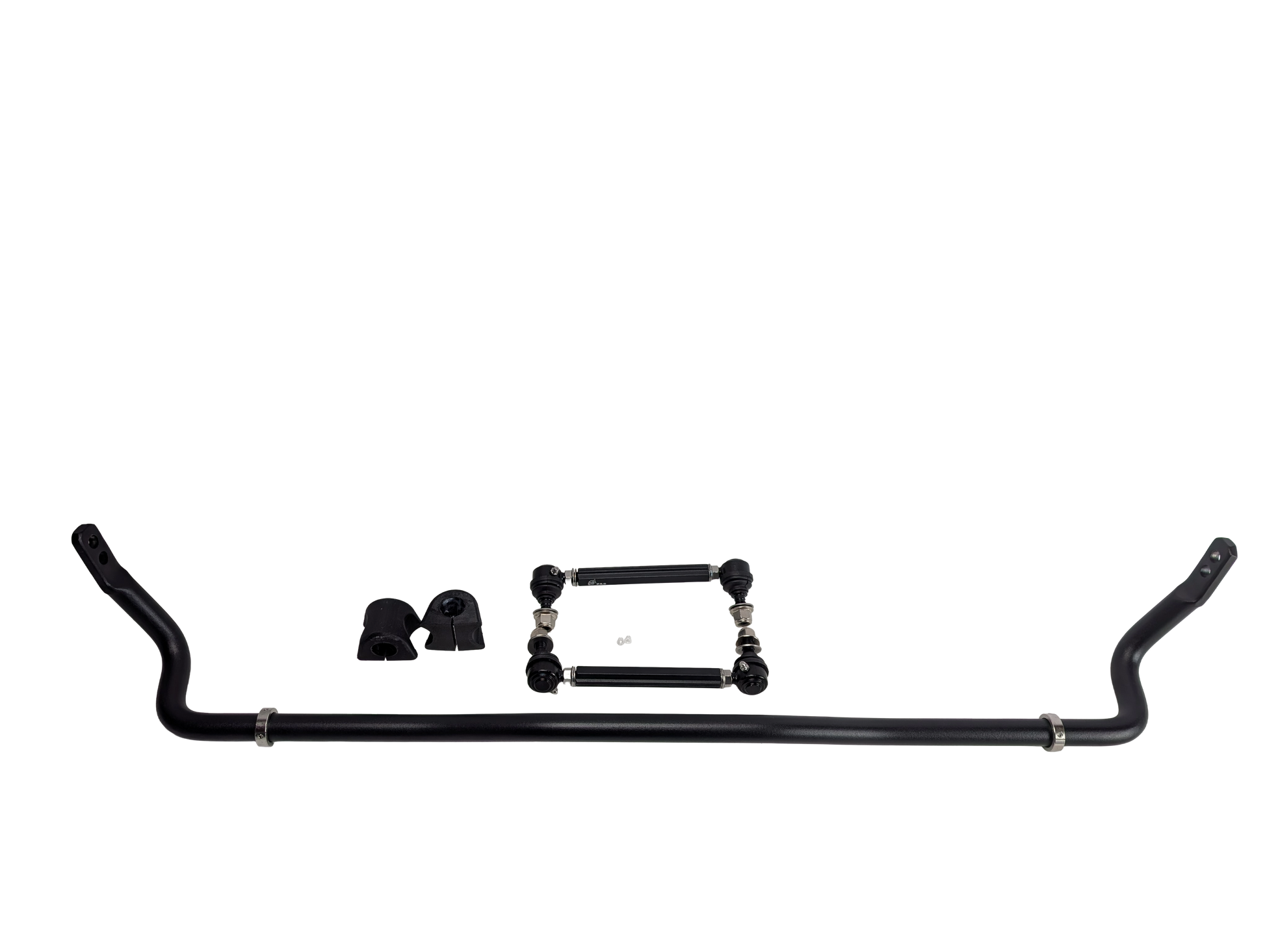

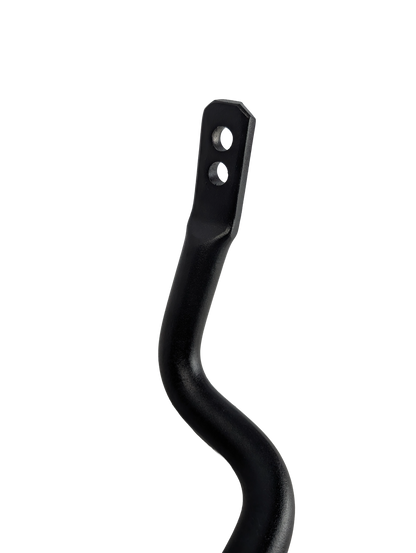

Front axle: 25 mm or 22 mm diameter with two adjustment positions
-

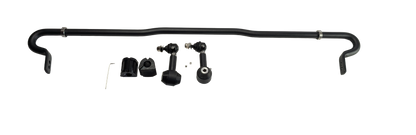

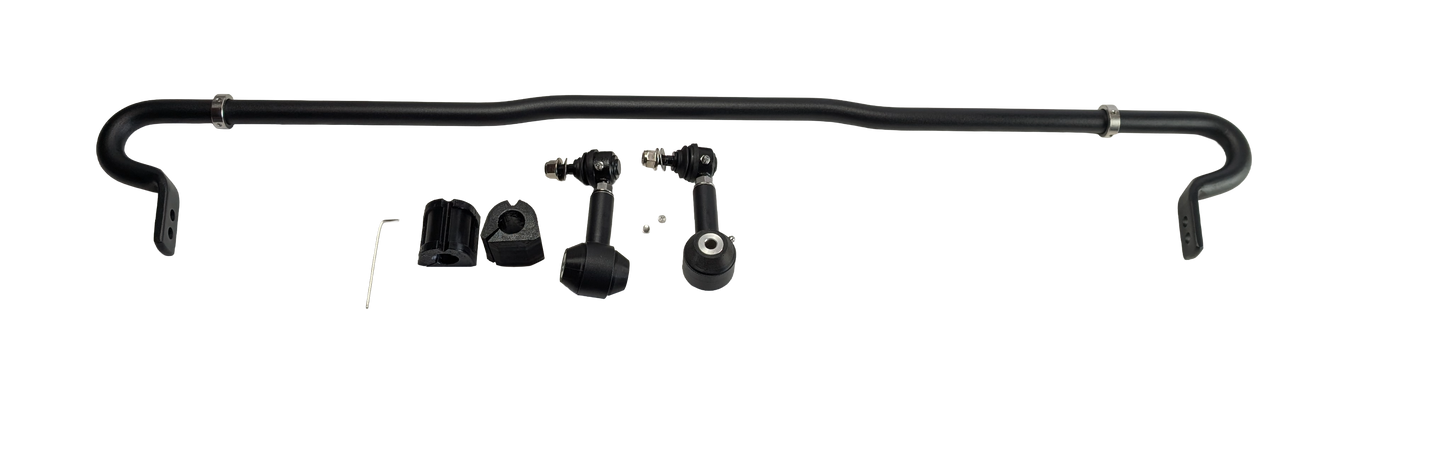

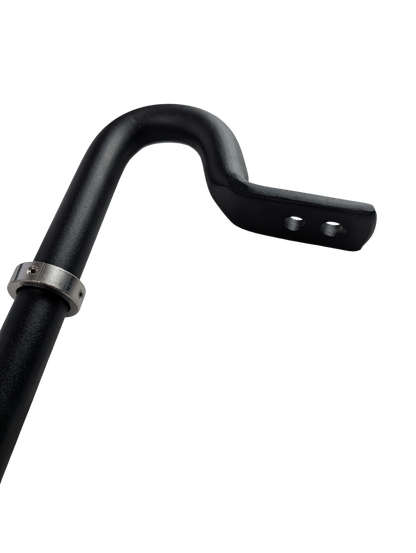

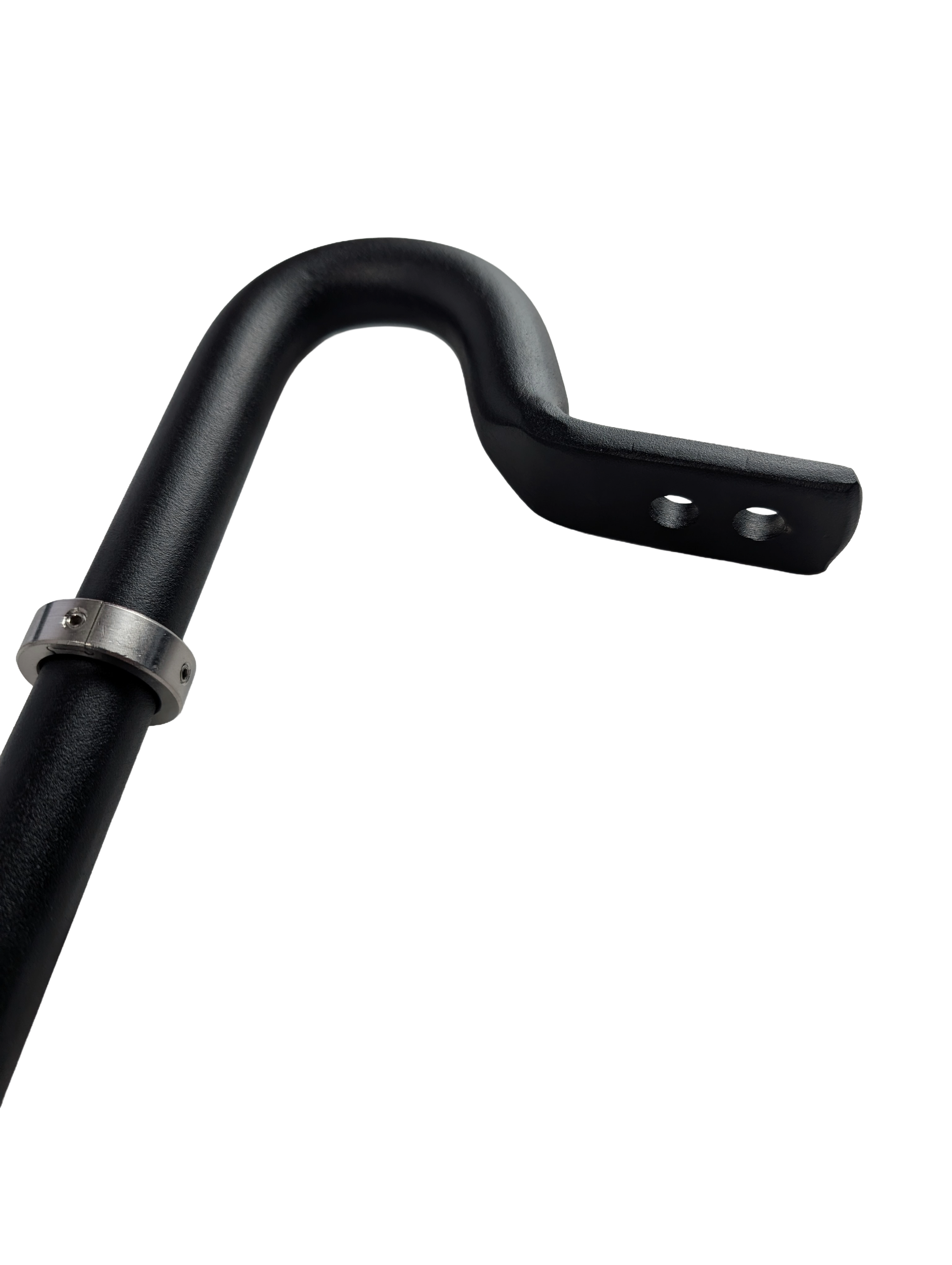

Rear axle: 22 mm or 16 mm diameter with two adjustment positions
-

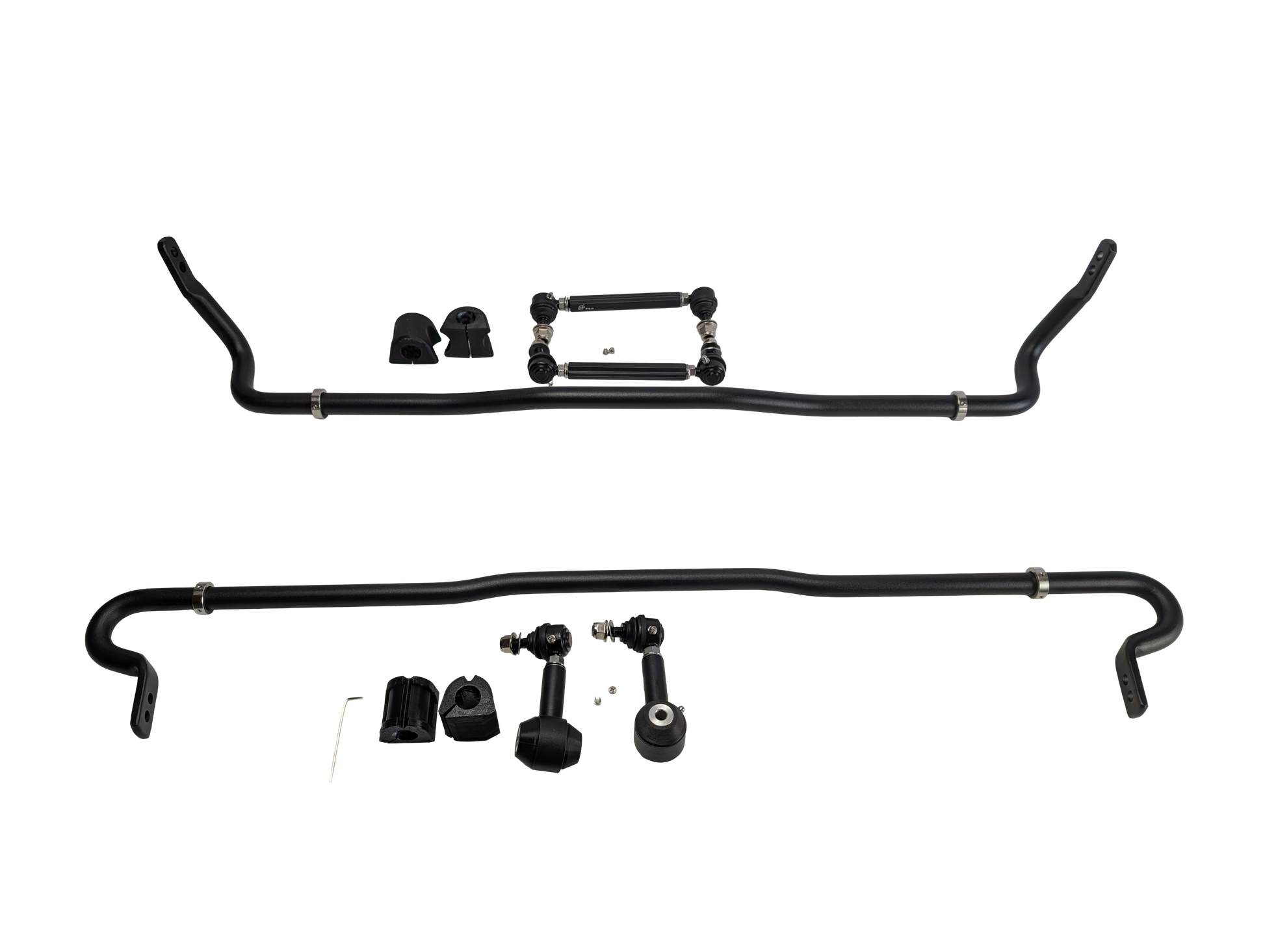

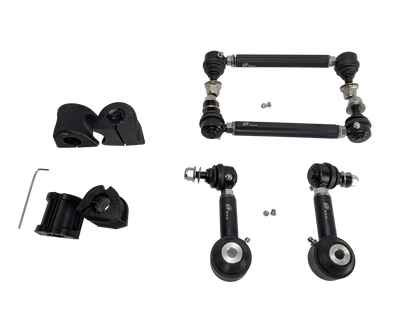

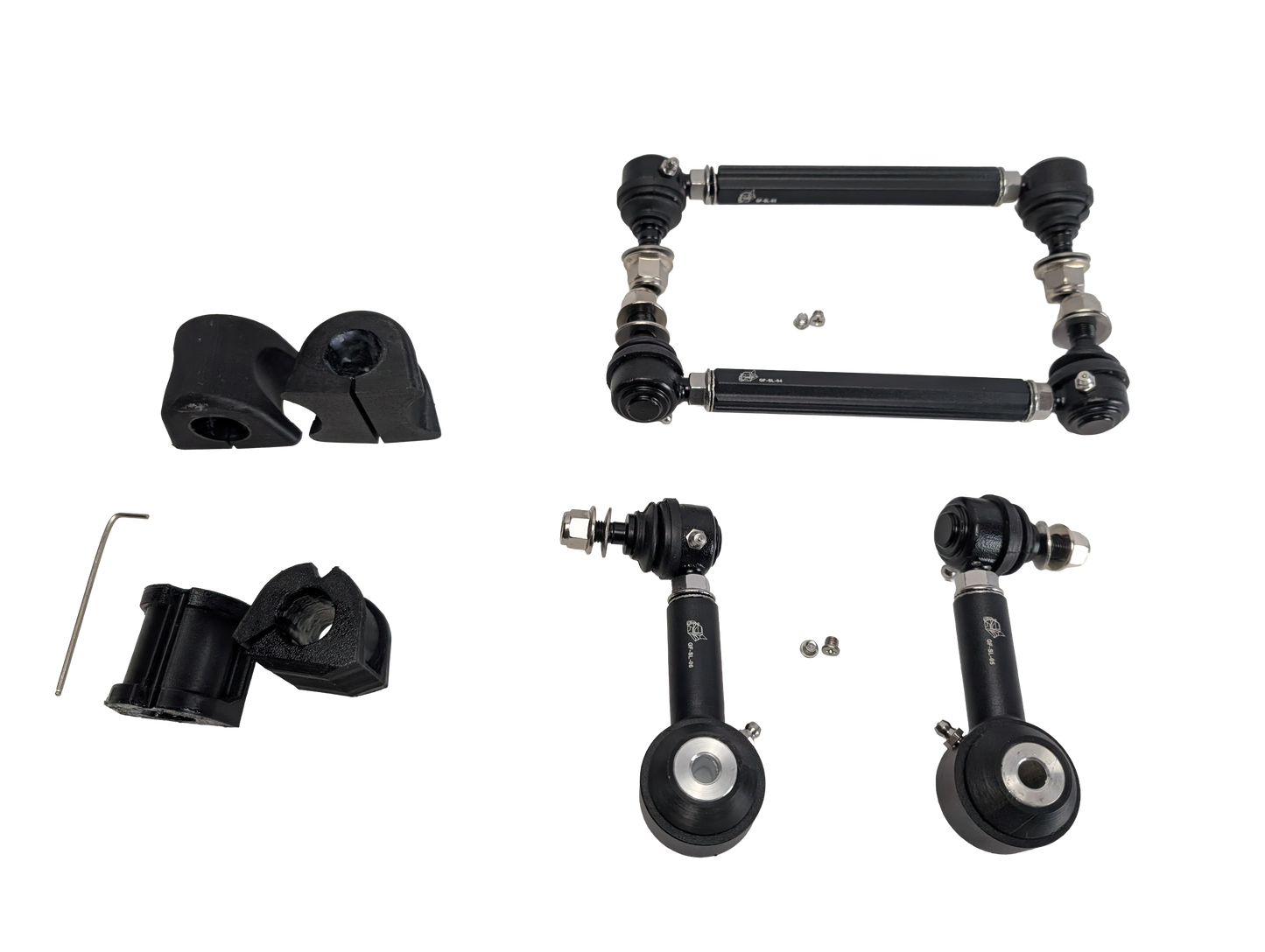

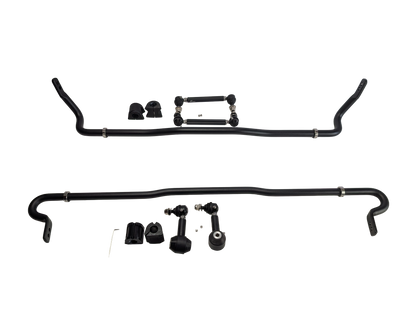

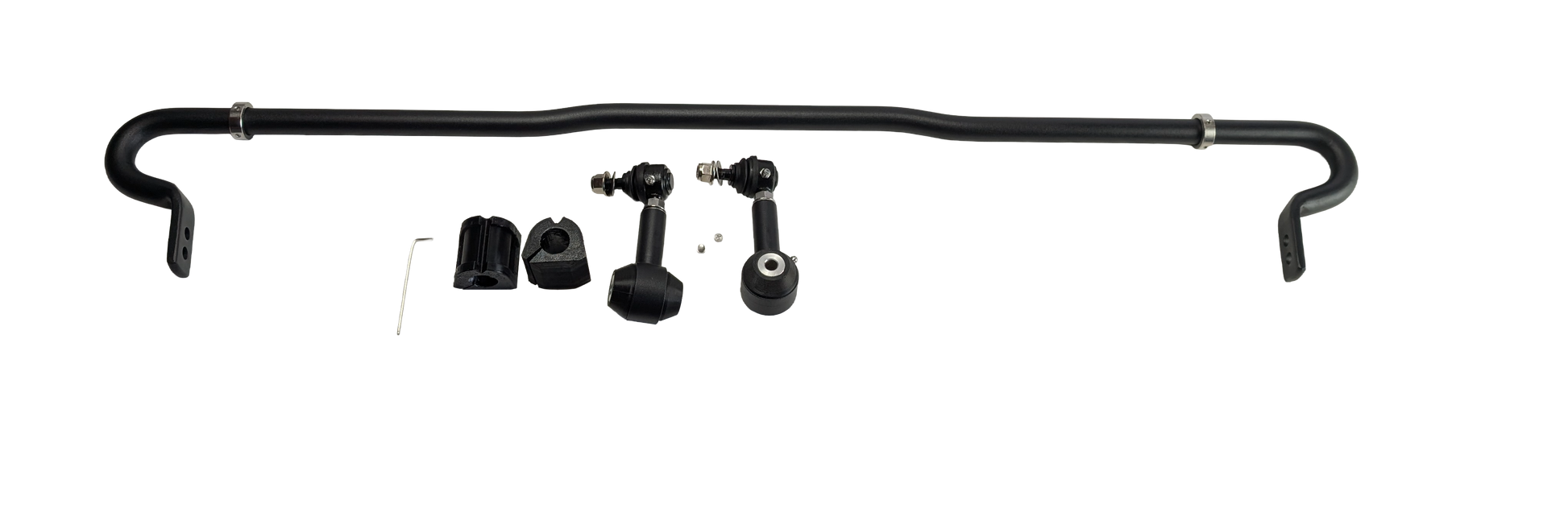

Complete set consisting of:
-
Front and rear stabilizer bars
-

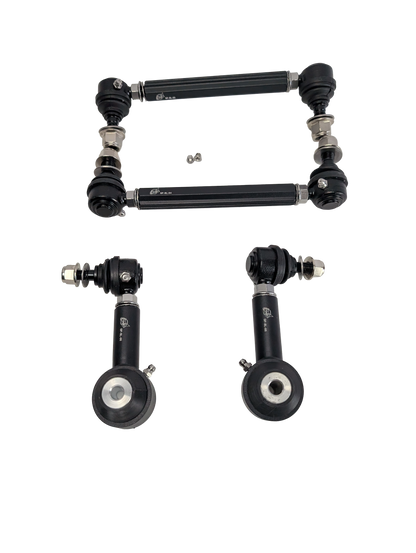

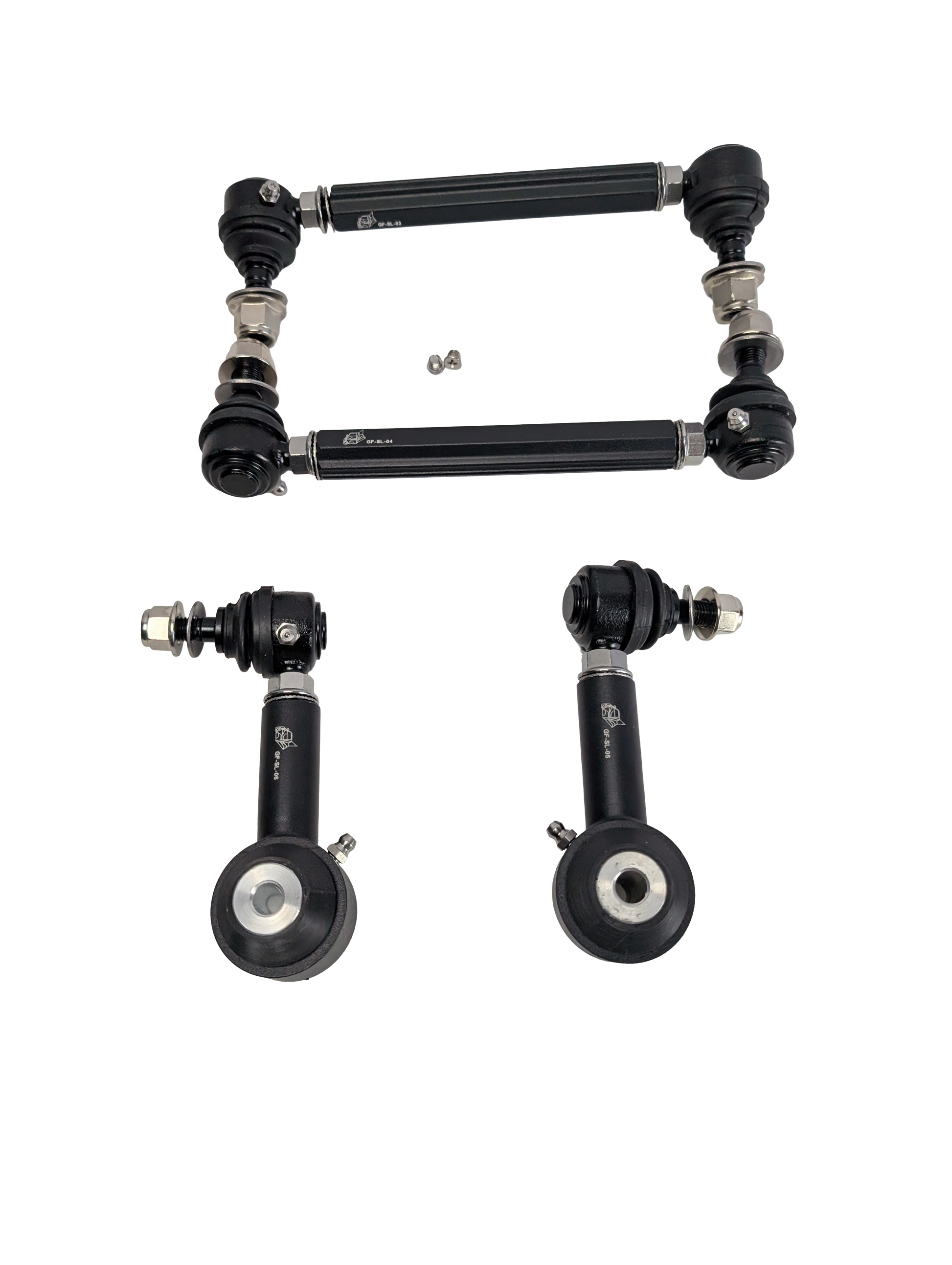

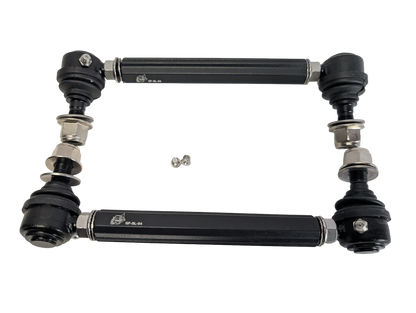

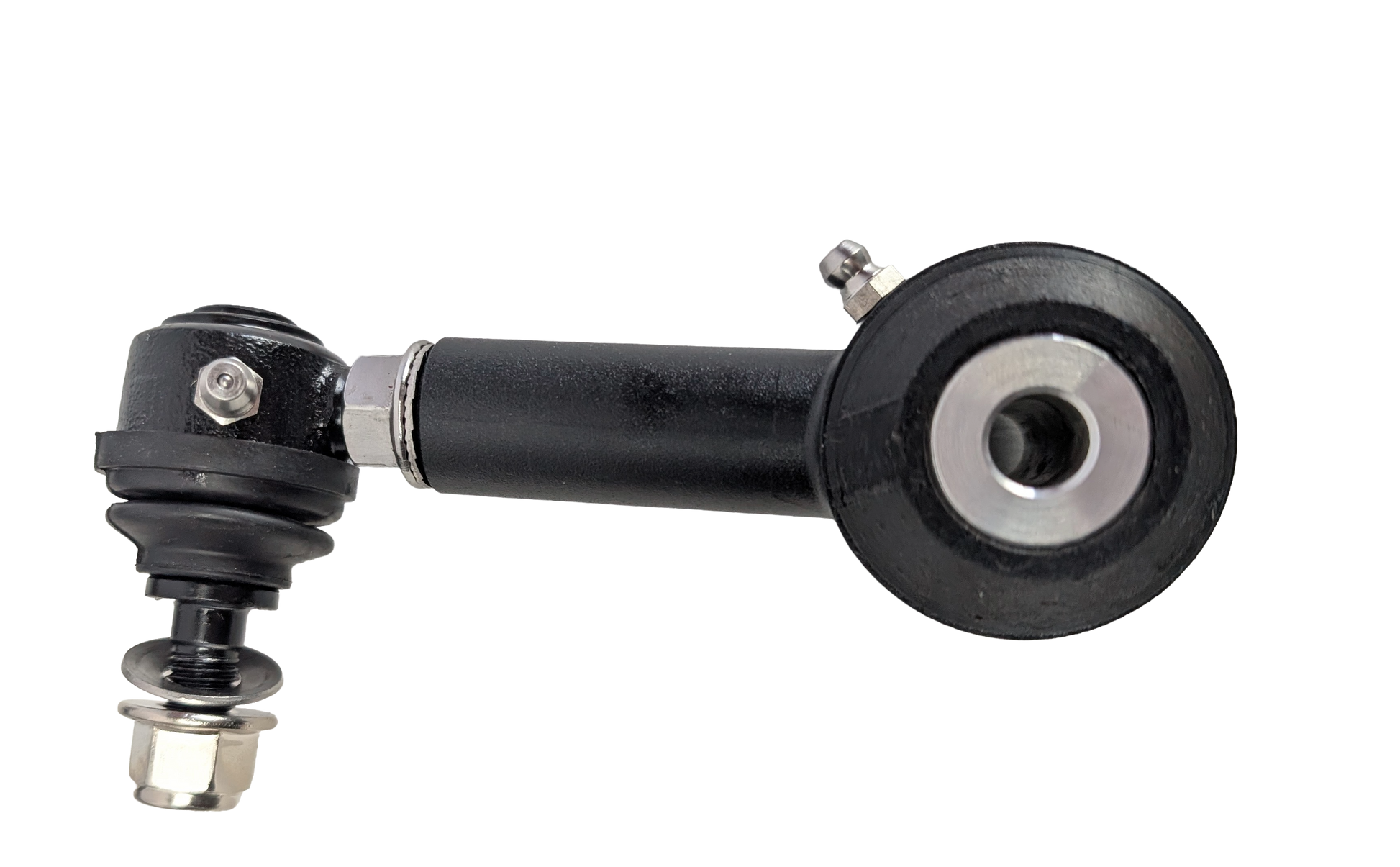

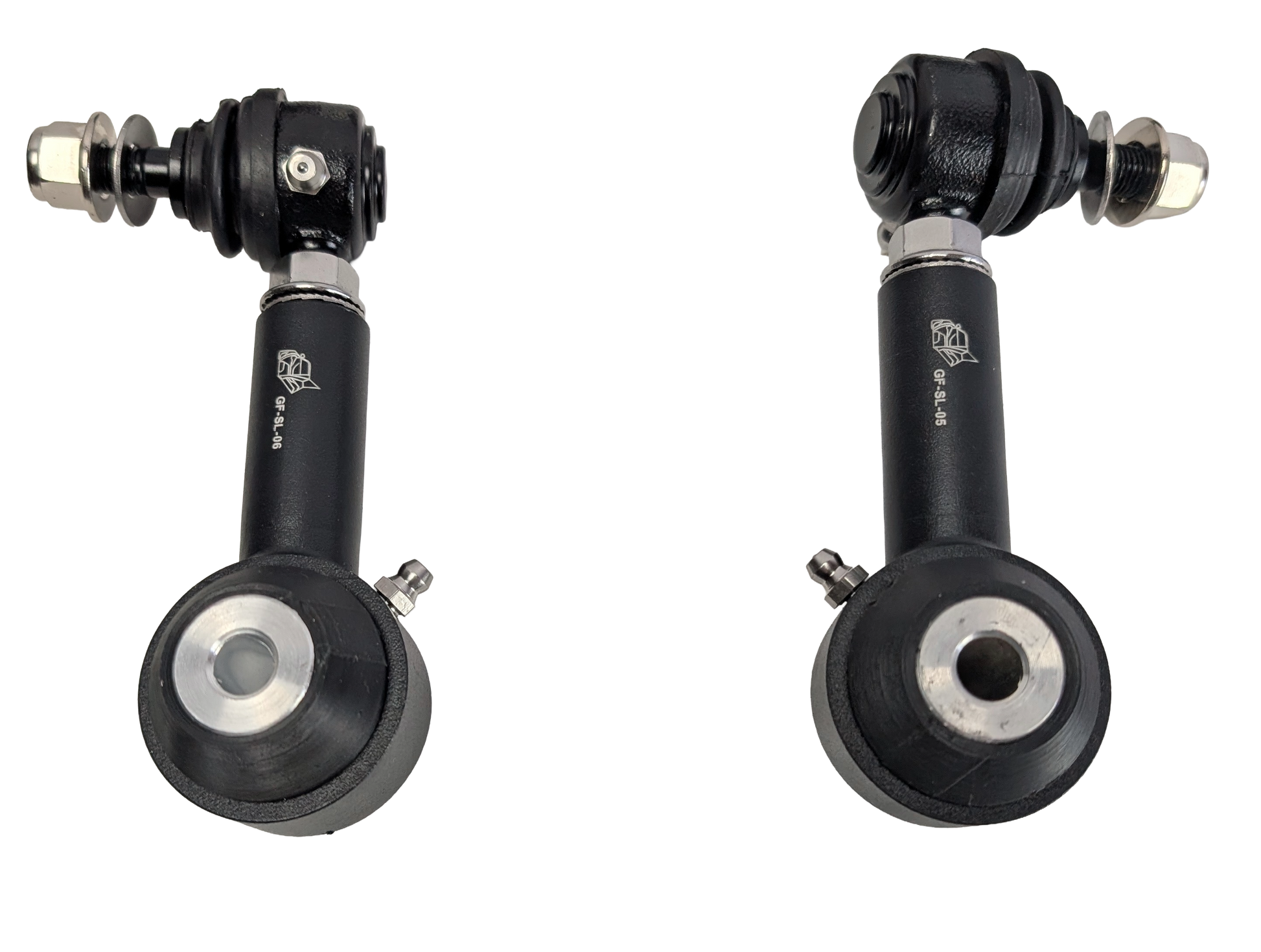

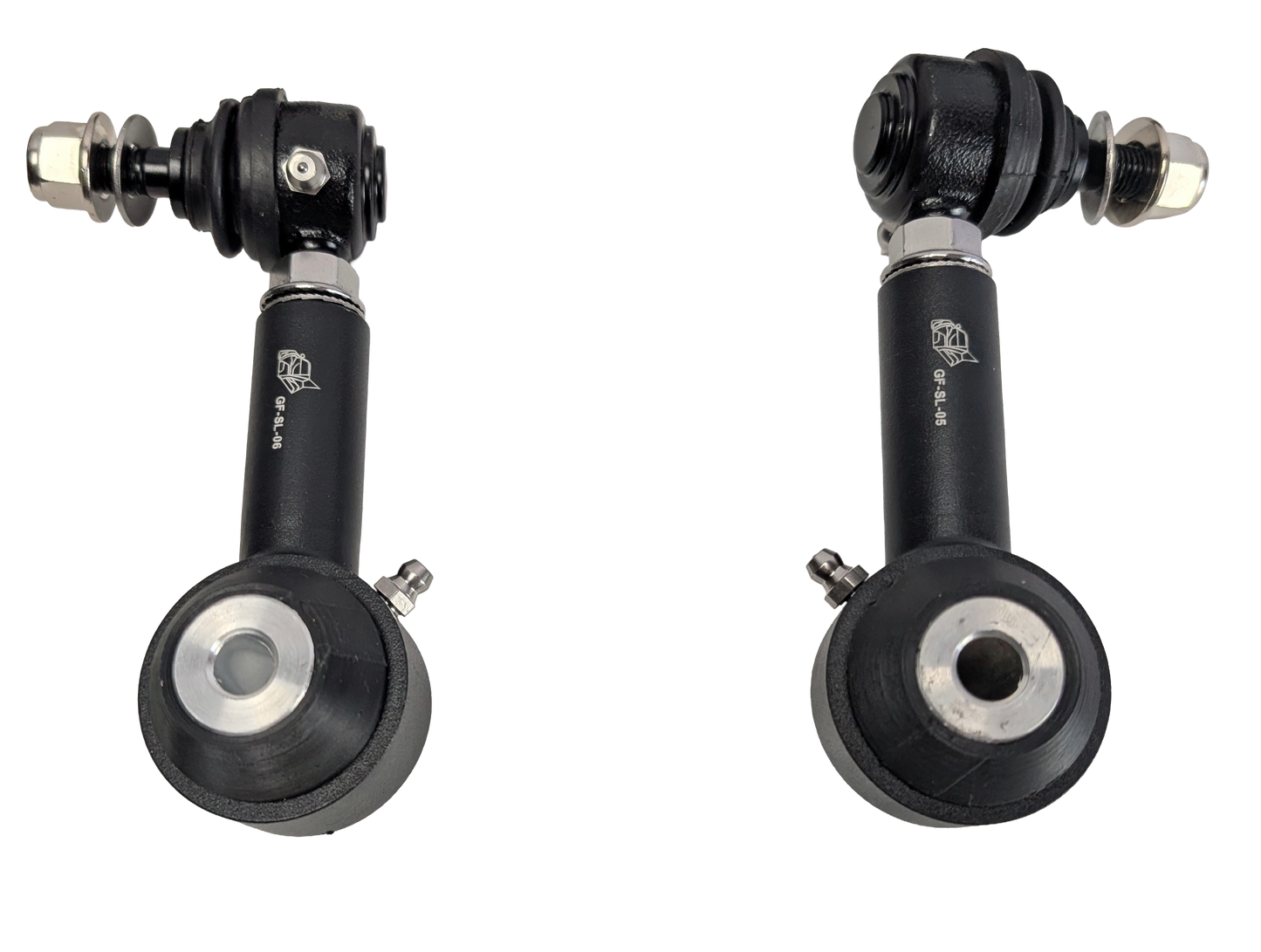

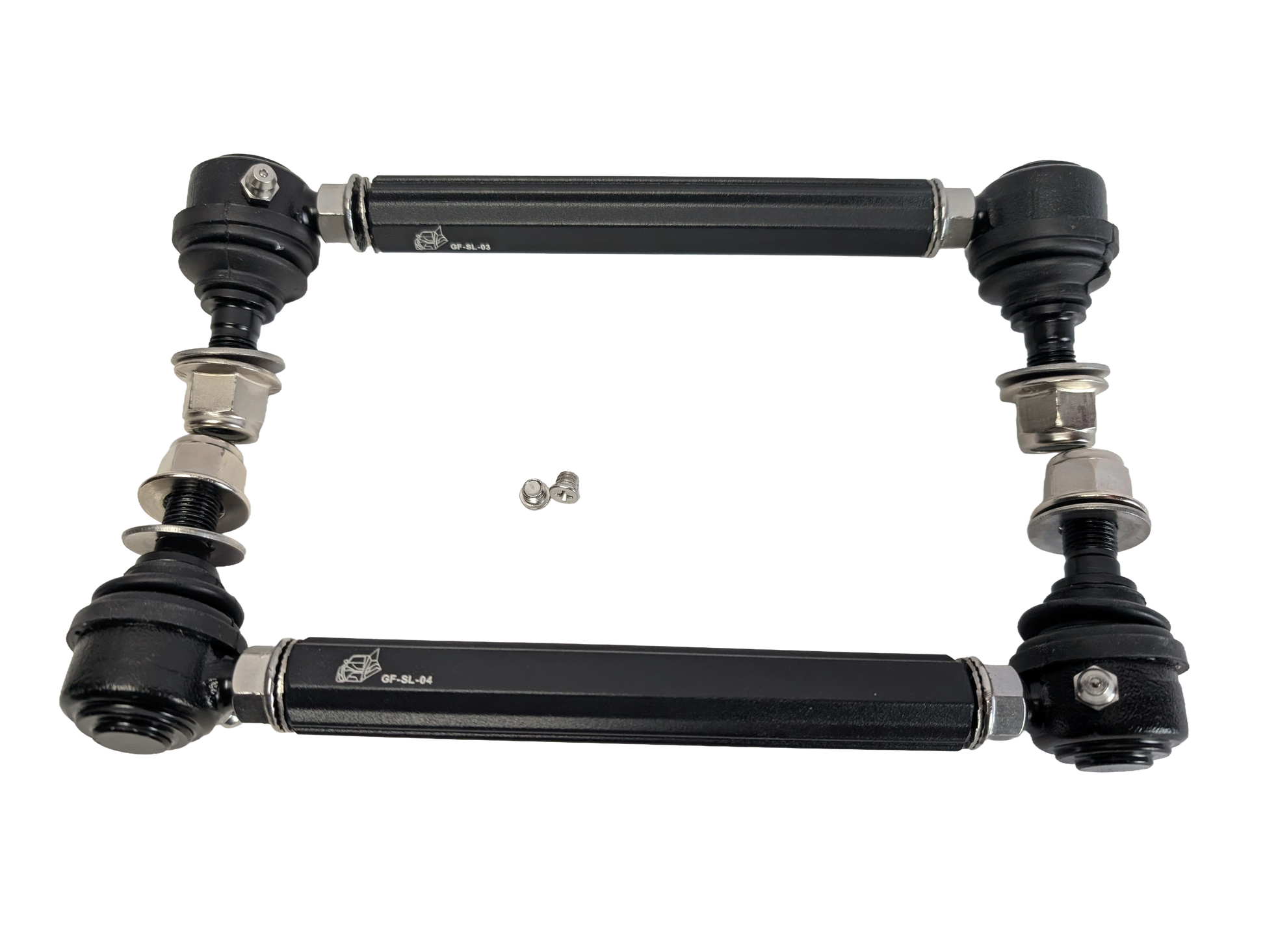

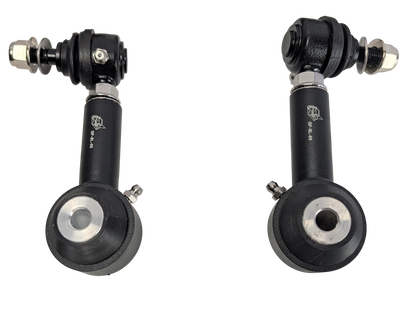

Four adjustable sway bar end links (two front, two rear)
-

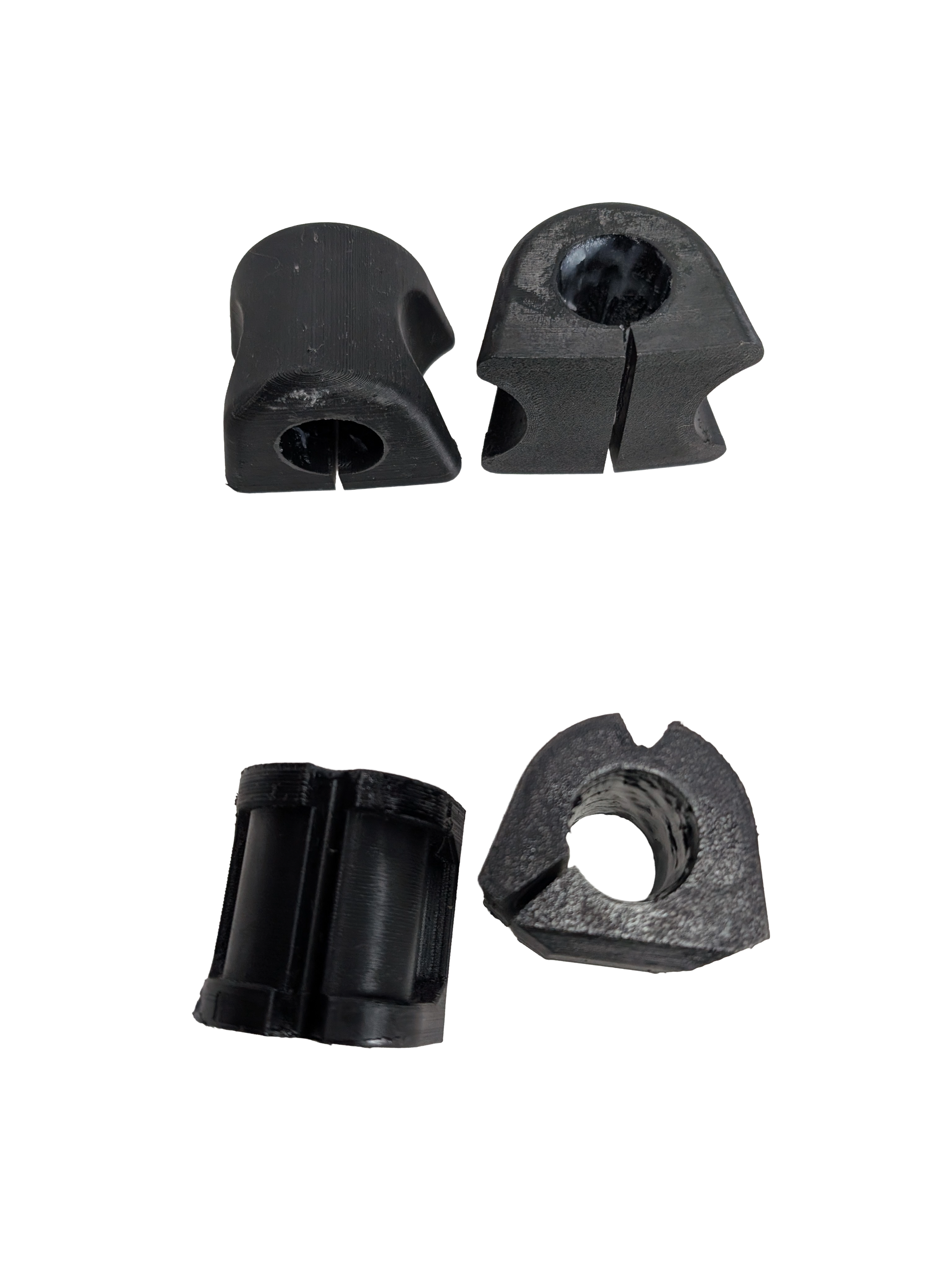

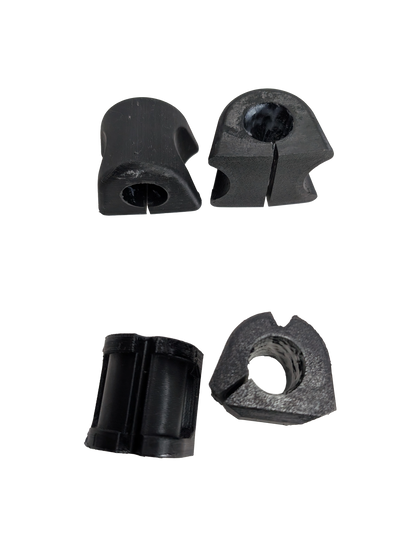

High-quality rubber bushings
-
Fasteners and installation kit
-
Driving Dynamics and Characteristics
-
Significantly reduced body roll and noticeably firmer turn-in – the vehicle remains more neutral and controllable in fast corners
-
Adjustable rear axle to specifically alter balance and grip distribution
-
Full adjustability of end links – especially important for lowered vehicles
-
Noticeably more direct response, but also a clear loss of comfort compared to stock
-
Creaking noises during articulation (e.g., curbs or driveways) are normal due to the design
-
In combination with stiffer suspension or solid bushings, ESP may react more sensitively – adjusting the setup or deactivating it on track days is recommended
- We truly only recommend the "Track" variant to experienced drivers who spend their time primarily on the racetrack with limited or deactivated ESP. The "Sport" variant is still significantly firmer than stock, but is much more suitable for daily driving and for the sport-ambitious driver.
- Design and Registration
-
All components black powder-coated – discreet look, robust surface
-
Logos and part numbers on all components for identification:
-

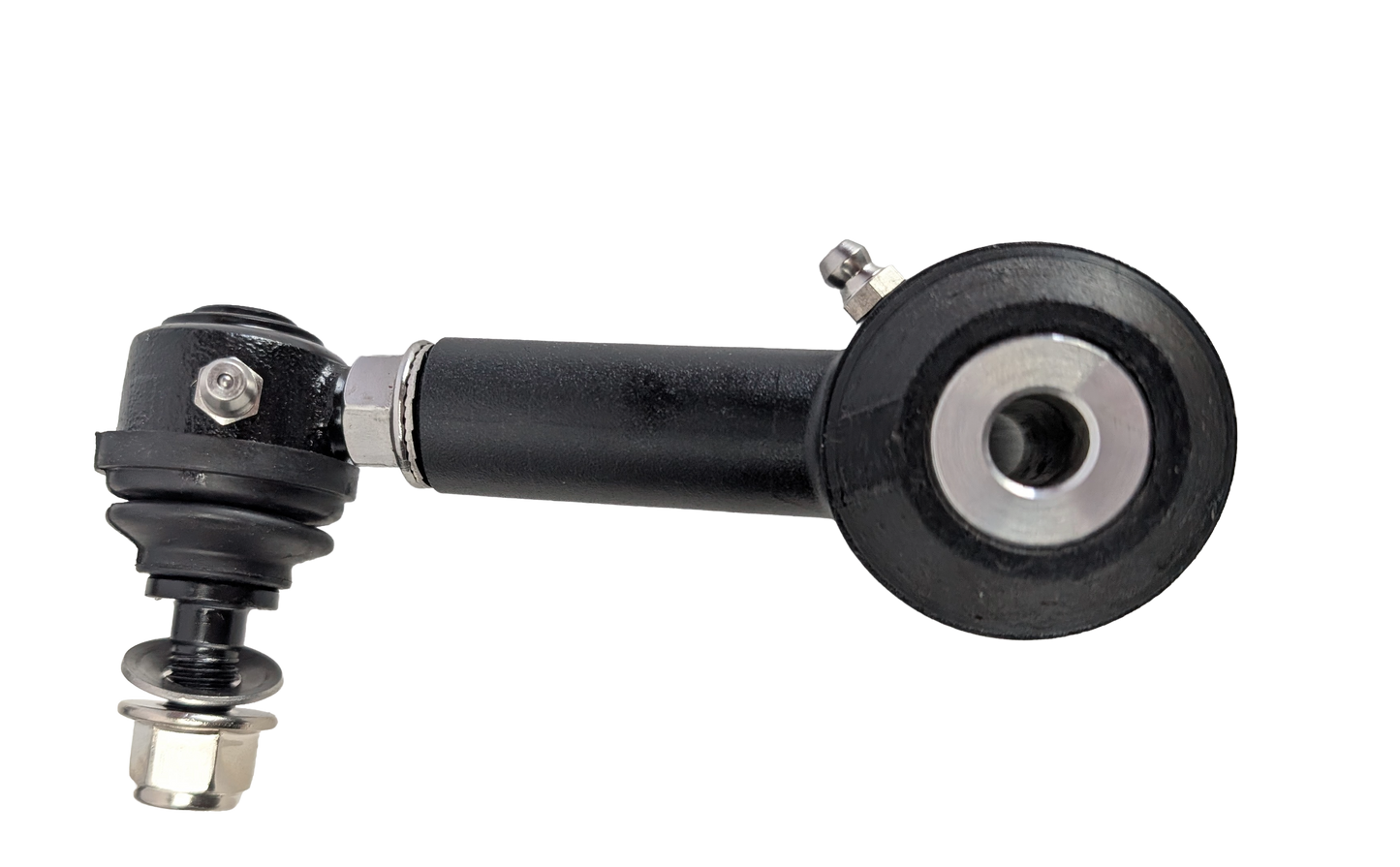

End links with rotatable side engraving
-
Sway bars with weather-resistant stickers (optional application)
-
-
Generally registerable, as these are simple spring steel components
-
Registration possible with our local inspector (Koblenz); documents can also be requested from there by your local inspector.
Note
-
No ABE (general operating permit) or expert report available. Motorsport part that can generally be registered via individual inspection.
-
Not suitable for those who prioritize comfort – this set is hard, direct, and uncompromising.
-
A softer second version is in development for drivers who want a more balanced mix of comfort and performance.
Recommended Combination

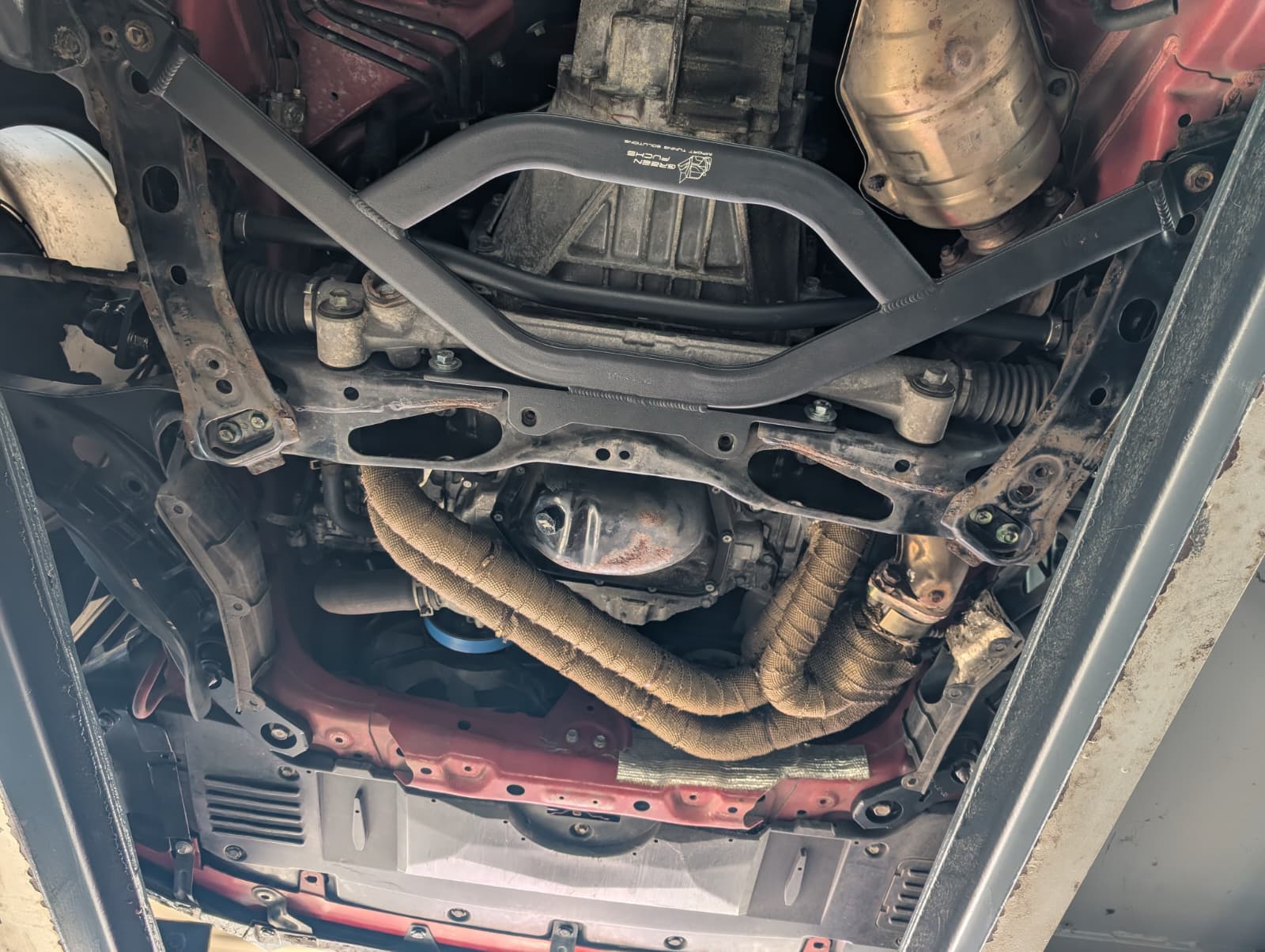

In combination with the GreenFuchs underbody braces and the adjustable rear control arms, the result is a particularly stiff, precise, and precisely adjustable overall chassis – ideal for spirited driving and track days.
Conclusion
The GreenFuchs sway bar set is made for enthusiasts, not for convenience. Those looking for maximum stability, precise feedback, and uncompromising control will find the right tool here.
Raw, honest, and effective – chassis performance as it should be.
Made by GreenFuchs.
