Whiteline | Sway Bar Kit (Front and Rear) Adjustable | GR Yaris
Whiteline | Sway Bar Kit (Front and Rear) Adjustable | GR Yaris
- Long-term order item (approx. 14-30 days shipping time)
You will receive €16,95 Guthaben when you purchase this item.
Couldn't load pickup availability
The Whiteline BTK018 combines adjustable front and rear sway bars with matching sway bar links. It reduces your GR Yaris's body roll in corners and allows you to tune the balance of both axles to suit your suspension, tires, and intended use.
Details and Scope of Delivery

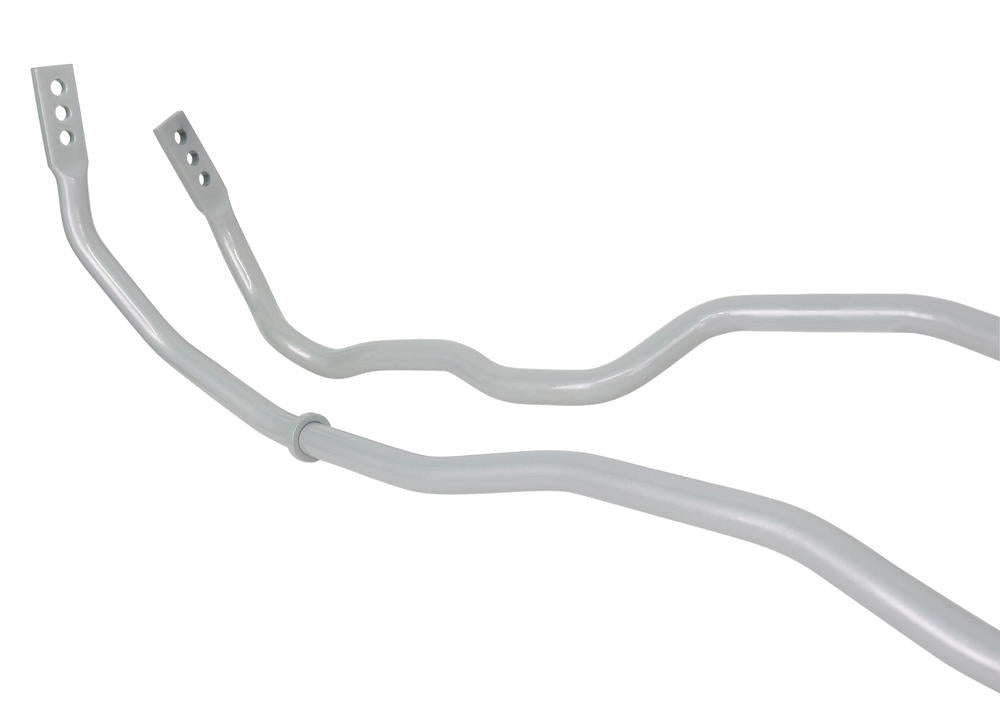

- Front: BTF102Z, 24 mm, triple adjustable
- Rear: BTR102Z, 24 mm, triple adjustable
- Material: solid spring steel
- Sway bar link kits KLC180-235 and KLC242

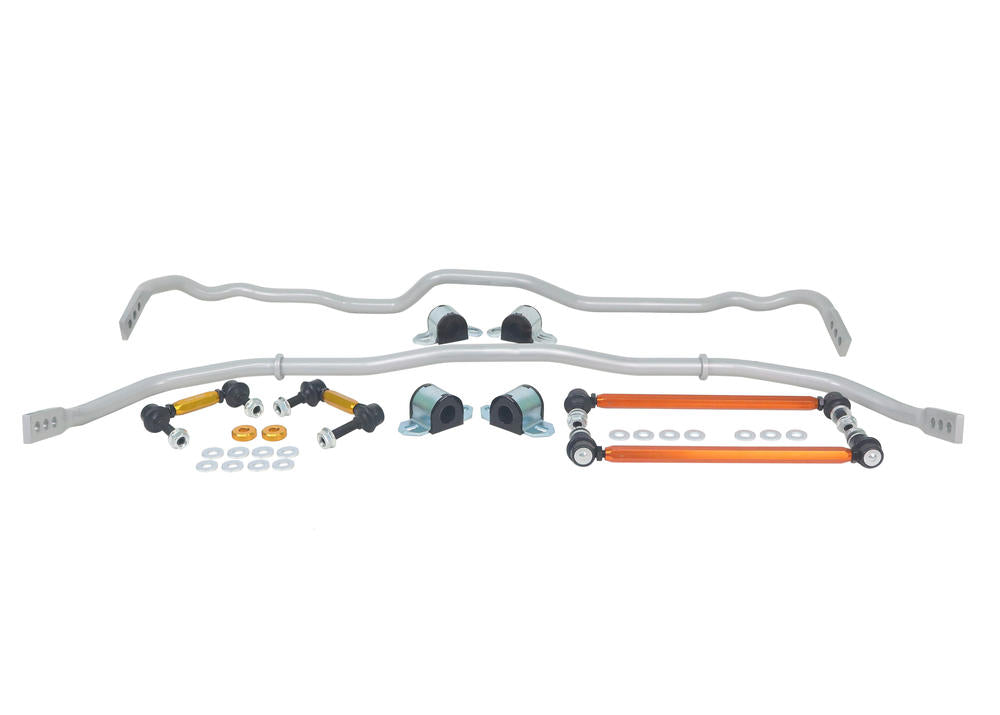

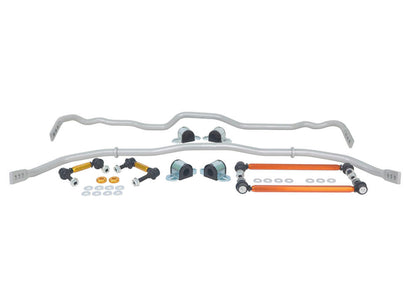

- Includes two sway bars, four sway bar links, four bushings, four mounting brackets, and two lateral locks
- Suitable for all Toyota GR Yaris AWD models from 2020 onwards, pre-facelift and facelift
- SKU: BTK018
Stiffness by Setting
| Axle | Setting | Effective Comparison Diameter | Change from Previous Step | Stiffer than OEM, approx. |
|---|---|---|---|---|
| Front | Soft | 23 mm | – | +75% |
| Front | Medium | 24 mm | +20% | +105% |
| Front | Hard | 25 mm | +20% | +145% |
| Rear | Soft | 23 mm | – | +115% |
| Rear | Medium | 24 mm | +20% | +155% |
| Rear | Hard | 25 mm | +20% | +200% |
Manufacturer guidelines: Both sway bars have an actual diameter of 24 mm. The comparison diameter describes the effect of the respective mounting position. The percentage values refer to sway bar stiffness, not the stiffness of the entire suspension.
Installation and Tuning
The general installation manual recommends starting with the soft setting. Lubricate bushing contact surfaces according to the instructions and tighten fasteners at normal ride height. Check for clearance and sway bar link alignment; re-check all fasteners after a maximum of 100 km.
